集成ELKF收集日志

简介

名称	简述
filebeat	轻量级的开源日志文件数据搜集器，负责对服务的日志进行收集。
logstash	数据收集引擎，可以对数据进行过滤、分析、丰富、统一格式等操作，存储到用户指定的位置，包含但不限于文件、 elasticsearch 。
elasticsearch	存储、搜索和分析引擎，特点是高可伸缩、高可靠和易管理等。
kibana	数据分析和可视化平台，通常依赖 elasticsearch 。

环境版本

Docker 镜像版本： 7.6.1。

logstash:7.6.1
kibana:7.6.1
elasticsearch:7.6.1
store/elastic/filebeat:7.6.1

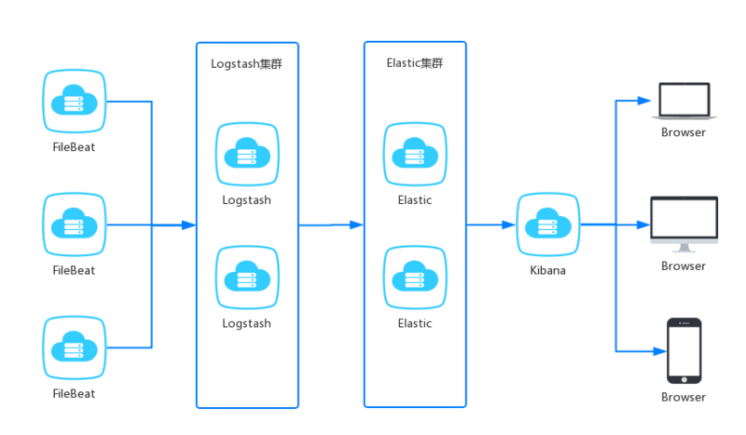

路线

FileBeat 收集日志、Logstash 解析格式化、Elasticsearch 存储、Kibana 分析、发出告警。

docker-compose安装elkf

文件树

cd /usr/local

容器编排配置 docker-compose.yml

version: "3.2"
services:
 filebeat:
  image: elastic/filebeat:7.12.1
  volumes:
   - /usr/local/elkf/filebeat/data:/usr/share/filebeat/data
   - /usr/local/elkf/filebeat/filebeat.yml:/usr/share/filebeat/filebeat.yml
   - /usr/local/elkf/filebeat/logs:/usr/share/filebeat/logs
  links:
    - logstash
  container_name: filebeat
  user: "root"
 elasticsearch:
  image: elasticsearch:7.12.1
  ports:
    - "9200:9200"
    - "9300:9300"
  volumes:
    - /usr/local/elkf/elasticsearch/data:/usr/share/elasticsearch/data
    - /usr/local/elkf/elasticsearch-plugins:/usr/share/elasticsearch/plugins
  environment:
    ELASTICSEARCH_USERNAME: "root"
    ELASTICSEARCH_PASSWORD: "123456"
    ES_JAVA_OPTS: "-Xmx256m -Xms256m"
    discovery.type: single-node
    xpack.security.enabled: 'false'
    TZ: Asia/Shanghai
  container_name: elasticsearch
  restart: always
 logstash:
  image: logstash:7.12.1
  ports:
   - "5044:5044"
  volumes:
   - /usr/local/elkf/logstash/logs:/usr/share/logstash/logs
   - /usr/local/elkf/logstash/config:/usr/share/logstash/config
  networks:
   - default
  environment:
   LS_JAVA_OPTS: "-Xmx256m -Xms256m"
   container_name: logstash
   TZ: Asia/Shanghai
  links:
   - elasticsearch
 kibana:
  image: kibana:7.12.1
  ports:
   - "5601:5601"
  environment:
    I18N_LOCALE: zh-CN
    TZ: Asia/Shanghai
  container_name: kibana
  links:
   - elasticsearch
  restart: always

注意filebeat.xml权限

//只能为写 不然启动不了
chmod go-w filebeat.yml
//拥有者必须时root
chown root filebeat.yml

vim filebeat.yml

   filebeat.config:
     modules:
       path: ${path.config}/modules.d/*.yml
       reload.enabled: false

     processors:
       - add_cloud_metadata: ~
       - add_docker_metadata: ~

   filebeat.inputs:
     - type: log
       paths:
         - /usr/share/filebeat/logs/*.log
       multiline.pattern: '^[0-9]{4}-[0-9]{2}-[0-9]{2}'
       multiline.negate: true
       multiline.match: after
       multiline.timeout: 10s

   output.logstash:
     hosts: ["logstash:5044"]

vim logstash.yml

http.host: "0.0.0.0"
xpack.monitoring.elasticsearch.hosts: [ "http://elasticsearch:9200" ]
xpack.monitoring.enabled: true
path.config: /usr/share/logstash/config/*.conf
path.logs: /usr/share/logstash/logs

vim logstash-simple.conf

input {
  beats {
    port => 5044
#    codec => json
  }
}
filter {

    date {
       match => ["timestamp","yyyy-MM-dd'T'HH:mm:ss,sss"]
       remove_field => "timestamp"
       target => "@timestamp"
    }

}
output {
  elasticsearch {
    hosts => ["elasticsearch:9200"]
    index => "%{[@metadata][beat]}-%{[@metadata][version]}-%{+YYYY.MM.dd}"
    user => "root"
    password => "123456"
  }
}

启动

docker-compose up -d

注意

• 一般单独服务器部署logstash日志分析，传给es集群
• 每个服务部署服务器安装filebeat
• es集群单独部署

windows 安装filebeat

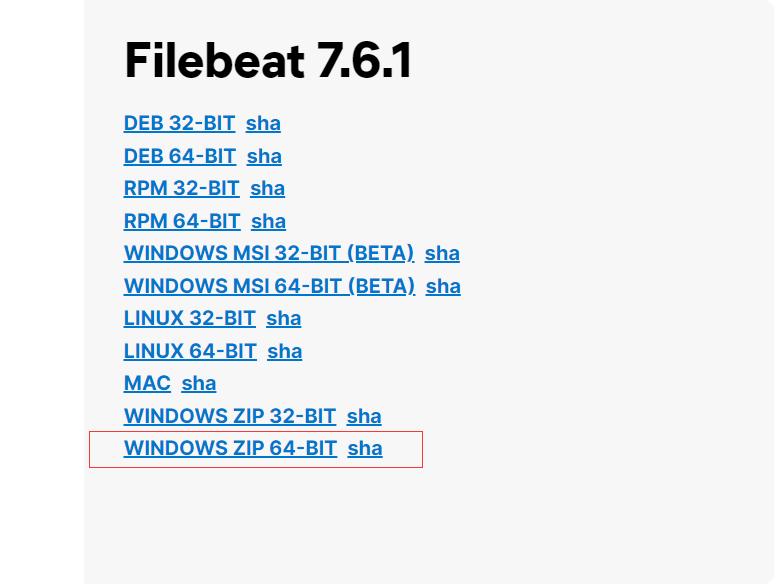

下载

地址：https://www.elastic.co/cn/downloads/past-releases#filebeat

找到自己的版本。。

https://www.elastic.co/cn/downloads/past-releases/filebeat-7-6-1

配置使用

1.解压，放到D:\work\soft

2.编辑 filebeat.yml

filebeat.config:
  modules:
    path: ${path.config}/modules.d/*.yml
    reload.enabled: false

#  processors:
#    - add_cloud_metadata: ~
#    - add_docker_metadata: ~

filebeat.inputs:
  - type: log
    enabled: true
    fields:
     type: "match-user-service"
    paths:
      - D:\work\soft\online-match-logs\match-user-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
  - type: log
    enabled: true
    fields:
     type: "match-gateway-service"
    paths:
      - D:\work\soft\online-match-logs\match-gateway-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
  - type: log
    enabled: true
    fields:
     type: "match-player-service"
    paths:
      - D:\work\soft\online-match-logs\match-player-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
  - type: log
    enabled: true
    fields:
     type: "match-activity-service"
    paths:
      - D:\work\soft\online-match-logs\match-activity-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
  - type: log
    enabled: true
    fields:
     type: "match-order-service"
    paths:
      - D:\work\soft\online-match-logs\match-order-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
  - type: log
    enabled: true
    fields:
     type: "match-base-service"
    paths:
      - D:\work\soft\online-match-logs\match-base-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
  - type: log
    enabled: true
    fields:
     type: "match-draw-service"
    paths:
      - D:\work\soft\online-match-logs\match-draw-service\**\*.log
    multiline.pattern: '^\d+.*$'
    multiline.negate: true
    multiline.match: after
    multiline.timeout: 10s
output.logstash:
  hosts: ["192.168.171.132:5044"]
  indices:
    - index: "match-draw-service-%{+yyyy.MM.dd}"
      when.equals:
        fields.type: "match-draw-service"
    - index: "match-activity-service{+yyyy.MM.dd}"
      when.equals:
        fields.type: "match-activity-service"
    - index: "match-base-service-%{+yyyy.MM.dd}"
      when.equals:
        fields.type: "match-base-service"
    - index: "match-order-service-%{+yyyy.MM.dd}"
      when.equals:
        fields.type: "match-order-service"
    - index: "match-player-service-%{+yyyy.MM.dd}"
      when.equals:
        fields.type: "match-player-service"
    - index: "match-user-service-%{+yyyy.MM.dd}"
      when.equals:
        fields.type: "match-user-service"

​

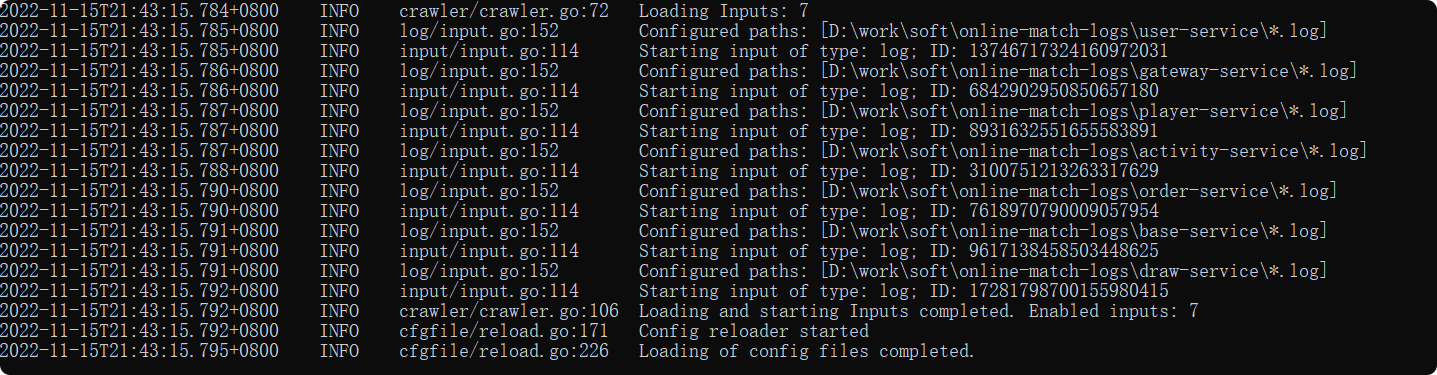

3.启动

运行
filebeat.exe -e -c filebeat.yml

springboot配置-日志输出

新建logback-spring.xml

resources下新建logback-spring.xml

文件内容

<?xml version="1.0" encoding="UTF-8"?>
<!--
 说明：
   1. 文件的命名和加载顺序有关
     logback.xml早于application.yml加载，logback-spring.xml晚于application.yml加载
     如果logback配置需要使用application.yml中的属性，需要命名为logback-spring.xml
   2. logback使用application.yml中的属性
     使用springProperty才可使用application.yml中的值 可以设置默认值
 -->
<configuration debug="false">
    <define name="ip" class="com.kim.match.common.config.LogIpConfig"/>
    <springProperty name="port" scope="context" source="server.port" defaultValue="0000"/>
    <springProperty name="appName" scope="context" source="spring.application.name"/>
    <!--配置文件配置日志存放地址，方便修改-->
    <springProperty name="logsFilePath" scope="context" source="logging.path"/>
    <!--定义日志文件的存储地址 勿在 LogBack 的配置中使用相对路径-->
    <!--${LOG_PATH:-}是获得文件基础路径为空，使用application.xml中配置的logging.path-->
    <property name="LOG_HOME" value="${LOG_PATH:-}/${appName}"/>
    <!-- 定义日志格式  -->
    <property name="LOG_PATTERN" value="%d{yyyy-MM-dd HH:mm:ss.SSS} [%-5level] [%thread] [%-30.30logger{30}] %msg%n"/>
    <!-- 控制台输出 -->
    <appender name="CONSOLE" class="ch.qos.logback.core.ConsoleAppender">
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>%d{yyyy-MM-dd HH:mm:ss.SSS} [%thread] %-5level %logger{50} - %msg%n</pattern>
            <!--解决乱码问题-->
            <charset>UTF-8</charset>
        </encoder>
    </appender>
    <!-- 按照每天生成日志文件 -->
    <appender name="FILE" class="ch.qos.logback.core.rolling.RollingFileAppender">
        <rollingPolicy class="ch.qos.logback.core.rolling.TimeBasedRollingPolicy">
            <!--日志文件输出的文件名-->
            <FileNamePattern>${LOG_HOME}/${ip}_${appName}/logs-%d{yyyy-MM-dd}.log</FileNamePattern>
            <maxHistory>10</maxHistory><!--保存最近30天的日志-->

        </rollingPolicy>
        <encoder class="ch.qos.logback.classic.encoder.PatternLayoutEncoder">
            <!--格式化输出：%d表示日期，%thread表示线程名，%-5level：级别从左显示5个字符宽度%msg：日志消息，%n是换行符-->
            <pattern>[%d{yyyy-MM-dd HH:mm:ss.SSS}] ${ip}_${appName} [%thread] %-5level %logger{50} - %msg%n</pattern>
        </encoder>
        <!--日志文件最大的大小-->
        <triggeringPolicy class="ch.qos.logback.core.rolling.SizeBasedTriggeringPolicy">
            <!--单个日志文件最大10M，到了这个值，就会再创建一个日志文件，日志文件的名字最后+1-->
            <MaxFileSize>10MB</MaxFileSize>
        </triggeringPolicy>
    </appender>

    <!-- 日志输出级别 -->
    <logger name="org.springframework" level="info"/>
    <logger name="com.kim.match" level="info"/>
    <logger name="com.alibaba.nacos.client.config.impl" level="info"/>
    <root level="info">
        <appender-ref ref="CONSOLE"/>
        <appender-ref ref="FILE"/>
    </root>
</configuration>

LogIpConfig

新建LogIpConfig类

package com.kim.match.common.config;

import ch.qos.logback.core.PropertyDefinerBase;
import lombok.extern.slf4j.Slf4j;

import java.net.InetAddress;
import java.net.UnknownHostException;

/**
 * @Author: kimli
 * @Date: 2022/11/15 20:50
 * @Description: 日志logback.xml 获取当前服务器IP使用
 */
@Slf4j
public class LogIpConfig extends PropertyDefinerBase {
    @Override
    public String getPropertyValue()  {
        String ip = null;
        try {
            ip = InetAddress.getLocalHost().getHostAddress();
        } catch (UnknownHostException e) {
            log.error("获取ip异常:{}", e.toString());
        }
        return ip;
    }
}

修改application.yml

新增配置文件路径

logging:
  file:
    path: D:/work/soft/online-match-logs
  level:
    com.kim.match: debug
    com.alibaba.nacos.client.config.impl: warn
    # feign调用日志，链路日志
    org.springframework.cloud.openfeign: debug
    org.springframework.cloud.sleuth: debug

​
